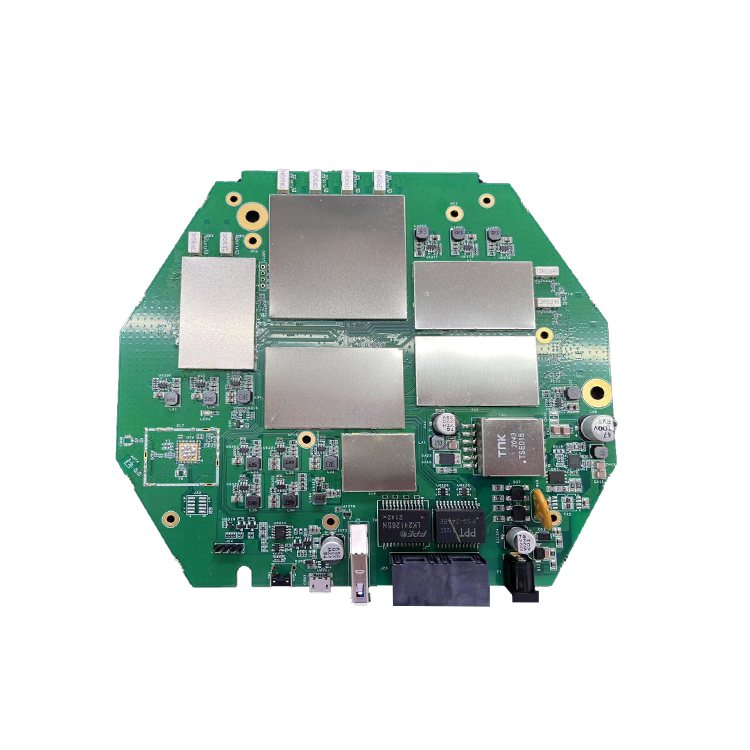

Tri-Band Wi-Fi 6 Main Board

型号：Tri-Band Wi-Fi 6 Main Board

【 详细介绍 】

Wi-Fi 6 AX7800M Tri band Access Point

Processor Maple IPQ5018

Wireless ChipsetMaple 2.4G (xFEM) – 2.4GHz+Spruce 5G QCN6102 (xFEM) – 5GHz+Pine 5G QCN9024 (xFEM) – 6GHz

Ethernet Phy 1x 2.5G with PoE PD + 1x GbE(embedded 1GbE phy)

SPI NOR Flash 16MB

SPI NAND Flash 128MB

DDR3L 512MB (single 16-bit)

BT/BLE v5.x, Maple

Maximum radio power 28dBm

Operating Tem: -40oC～65oC

ESD 8KV

Surge 6KV

EFT 2KV

Power Source PoE PD 802.3 at or DC12V

Power consumption <25W

Dimensions 180mm x 164mm x 15mm

Weight 0.7kg
