Outdoor Wi-Fi 6 AX1800M

型号：Outdoor Wi-Fi 6 AX1800M

【 详细介绍 】

Outdoor 2x2:2 2.4/5GHz Wi-Fi 6 access points

Qualcomm IPQ6000 ARM A53 CPU, Quad Core 1.2GHz CPU
OpenWRT
2×2 802.11ax 574Mbps @ 802.11ax + 1200Mbps @ 802.11ax
802.11ax
IEEE 802.3af/at
1 Gigabit Ethernet ports
1x SFP Gigabit Port
1x Console Port
Protection degree IP67

SPEC

Product type Wi-Fi6 Outdoor High Power Wireless Access Point
Qualcomm Platform IPQ6000+QCN5052+QCN5022+QCA8075
CPU ARM cortex-A53@Quad Core 1.2GHz
DDR 512MB
NOR Flash 16MB
NAND 128MB
Antenna : Internal or External Antenna
Supported radio technologies: 802.11n, 802.11g, 802.11b, 802.11ac, 802.11a，11ax
Radio Chains and Streams 2x2
Supported frequency bands: 2.412 ～ 2.472 GHz, 5.180 ～ 5.320 GHz，5.500 ～ 5.850 GHz
PHY Rate at 2.4 GHz, maximum: 574Mbps,
PHY Rate at 5 GHz, maximum : 1200Mbps
Ethernet Ports: 1x Gigabit Ethernet ports , 1x SFP Gigabit Port, 1x Console Port
LED: 1x 5 LED
PoE： 802.3at
Power Consumption： ≤18W

Operating Temperature: -40oC to 65oC
Storage and transportation conditions: -40oC to 70oC

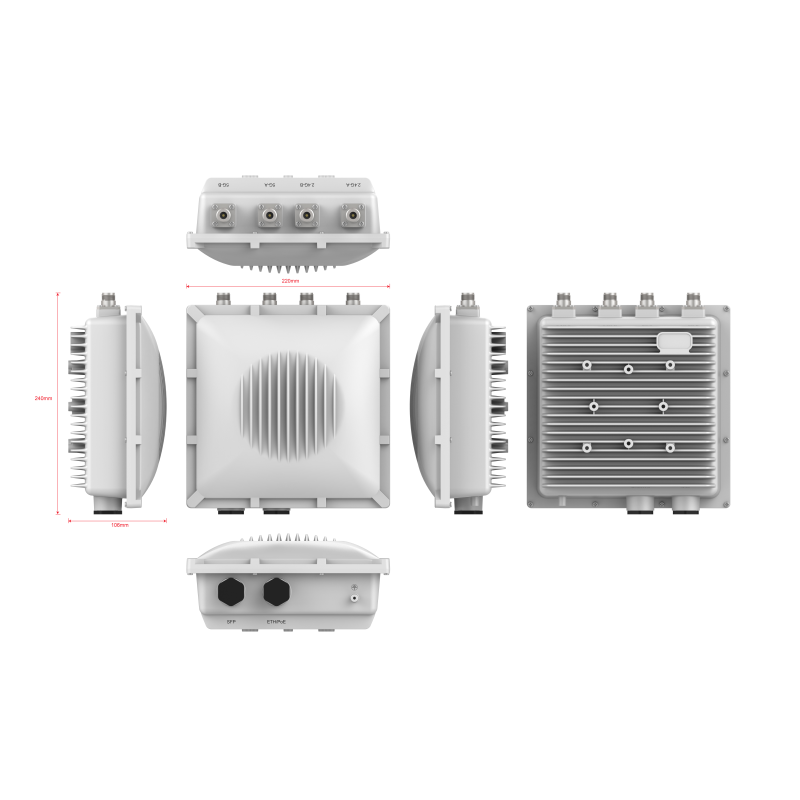

Dimension: 245mm×200mm×90mm
