Wi-Fi 6 Triple band AX5400M

型号：Wi-Fi 6 Triple band AX5400M

【 详细介绍 】

Outdoor AX5400M Dual band Access Point

Processor Maple IPQ5018

Wireless ChipsetMaple 2.4G (xFEM) – +Pine 5G QCN6024 (xFEM) – 5GHz

Ethernet Phy 1x 2.5G with PoE PD + 1x GbE(embedded 1GbE phy)

2x USB 2.0

SPI NOR Flash 16MB

SPI NAND Flash 128MB

DDR3L 512MB (single 16-bit)

BT/BLE v5.x, Maple

Maximum radio power 27dBm

Operating Tem: -10oC～50oC

ESD 8KV

Surge 2KV

EFT 2KV

Power Source PoE PD 802.3 at

DC Jack DC12V

Power consumption <25W

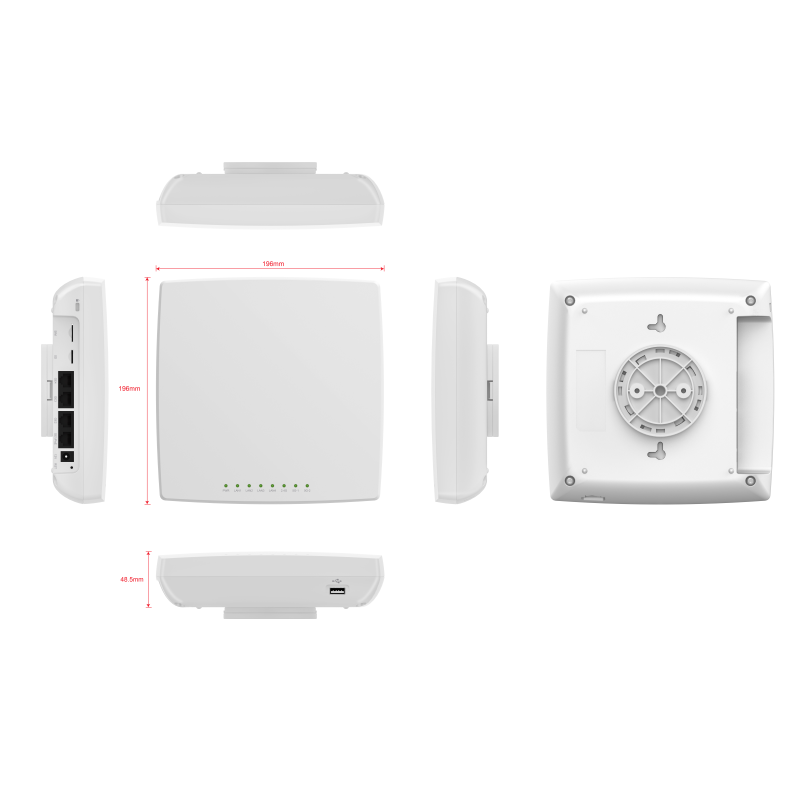

Dimensions 200mm x 200mm x 50mm

Weight 1.3kg
